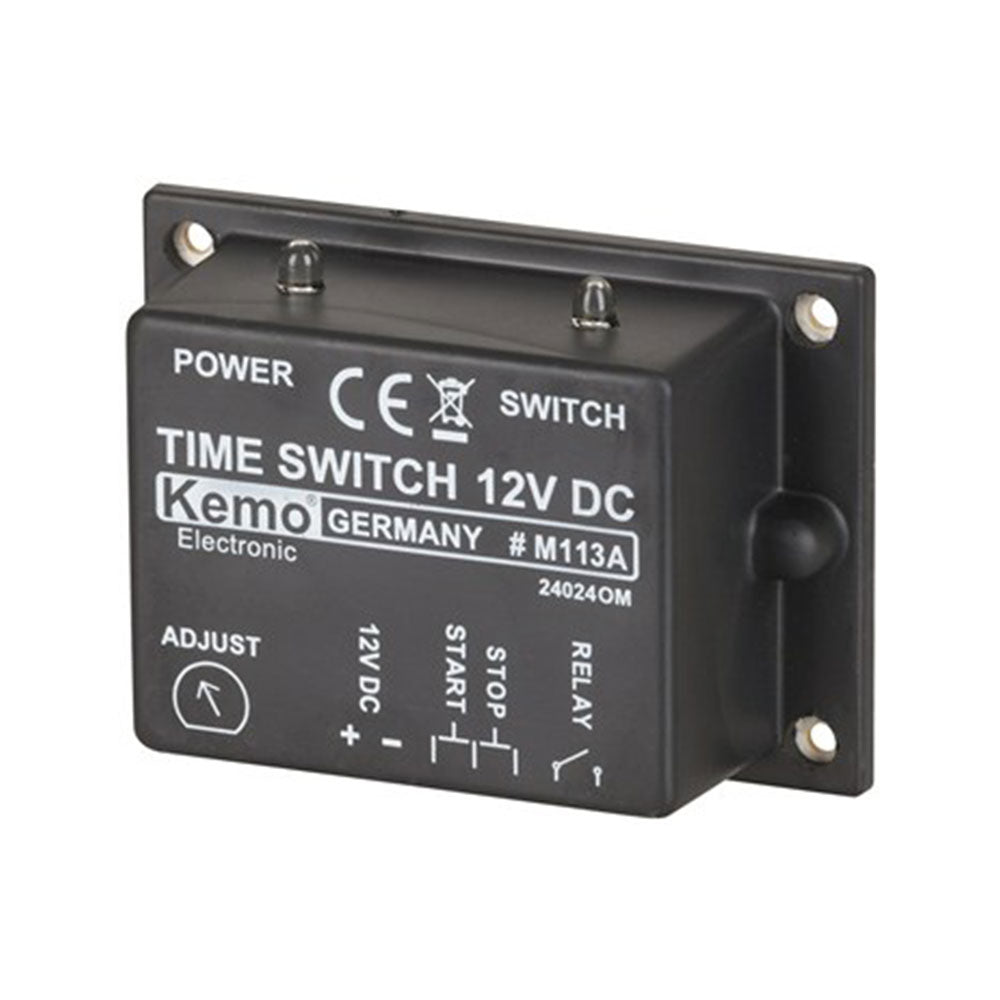

Time Switch 3A M113A Module 12V

Save yourself some hassle with this pre-assembled timing controller, all packaged into a small yet reliable form factor. It's simple to connect and versatile enough to configure to your needs. Periods of 2 seconds to 23 minutes can be adjusted easily with a screwdriver. The start and stop functions are controlled by simple switch inputs (two required, sold separately) and the relay output can control a device of up to 25VDC at 3A.

Product Specifications

• Update specifications to: Technical data: Input voltage solar cell panels: 14 - 30 V/DC open circuit voltage Nominal voltage: 12 V/DC
• Max. input current: 10 A,
• Short-time till 5 min: 20 A
• Inrush voltage: battery voltage approx. <13.4 V
• Interrupting voltage: battery voltage approx. >14.4 V
• Displays: 1 LED for "CHARGING", 1 LED for "BATTERY FULL"
• Own power consumption: <2.5 mA (LED switched on)
• Current consumption: 20mA/80mA (Relay Off/On)
• Time adjustment: 2 sec to 23 min

• Length : 13.5 cm
• Width : 8.6 cm
• Height : 4.3 cm
