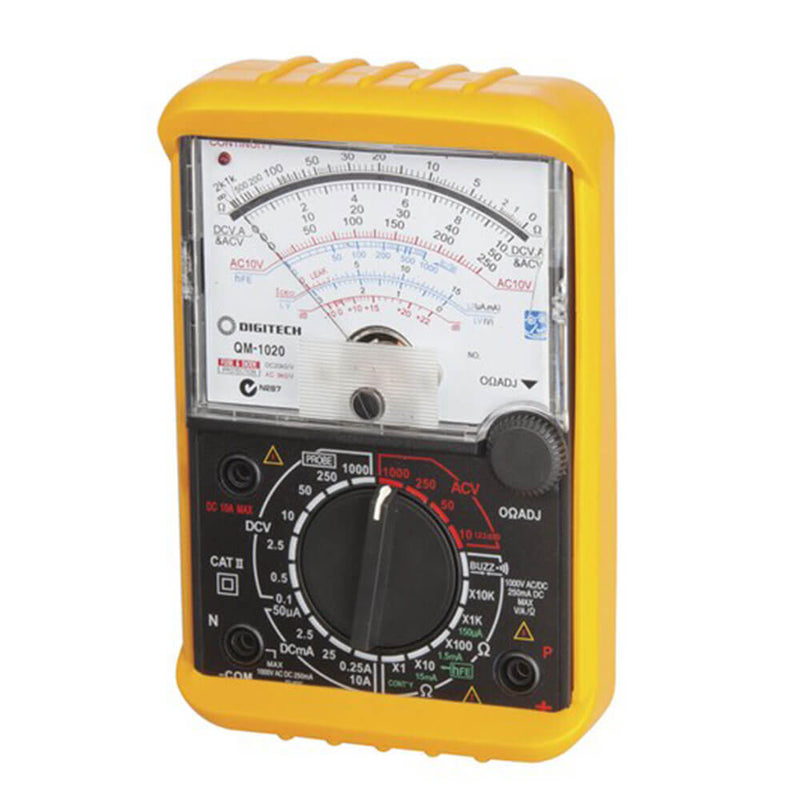

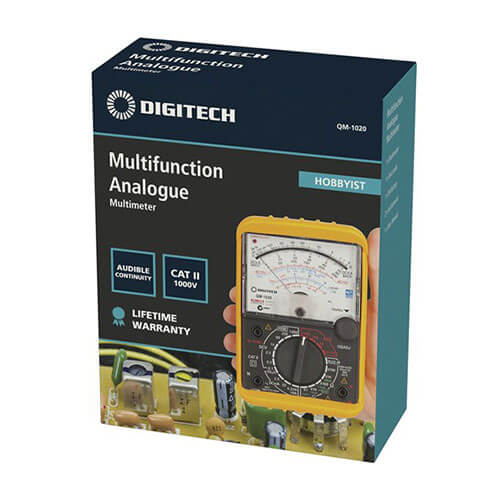

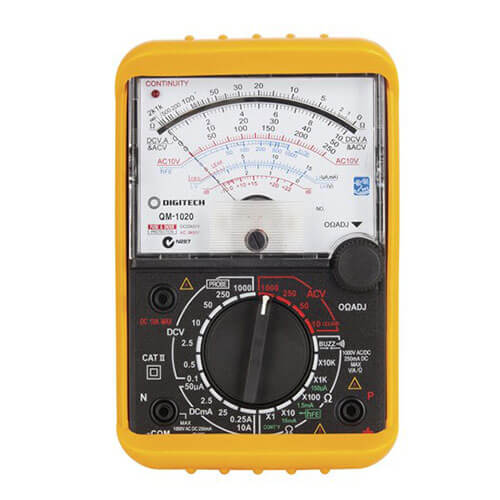

Analog Movement Multimeter

Digital multimeters have almost completely taken over, but there are those who prefer to use the old analog meter - it's still the best way to test a capacitor. This well-made meter has audible continuity, in addition to the normal set of functions.

Features:

• Audible continuity
• Specifications
• Display Analogue
• Security class Cat II 1000V
• Basic DCV accuracy 3%
• Ave/RMS AVE
• Input impedance 10M
• Special features dB, continuity buzzer

Product Specifications

• DC Current Ranges : 50.0 Microampere, 2.0mA, 25.0mA, 250.0mA
• DC Current Accuracy : 3.0%
• Resistance Ranges : 2.0Kiloohm, 20.0Kiloohm, 200.0Kiloohm, 2.0Megaohm, 20.0Ohm
• Resistance Accuracy : 3.0%
• AC Voltage Ranges : 10.0V, 50.0V, 250.0V, 1000.0V
• AC Voltage Accuracy : 4.0%
• DC Voltage Ranges : 100.0mV, 500.0mV, 2.0V, 10.0V, 50.0V, 250.0V, 1000.0V
• DC Voltage Accuracy : 3.0%
• Display Type : LCD
• Length : 150.0mm
• Width : 100.0mm
• Depth : 35.0mm
• Meter Input Impedence : 10.0Ohm

• Length : 17.2 cm
• Width : 13.4 cm
• Height : 6.2 cm
