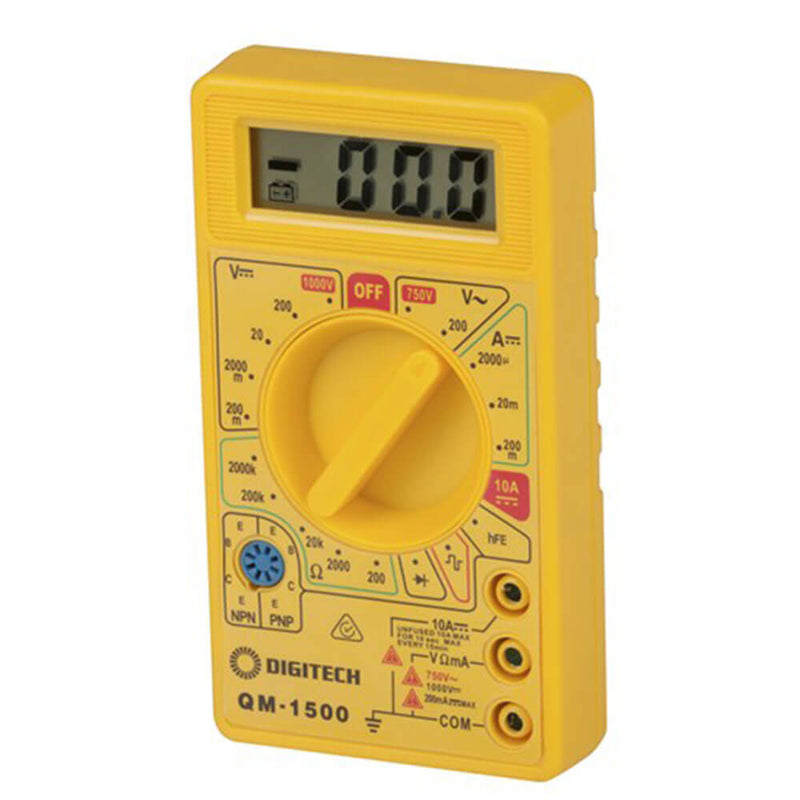

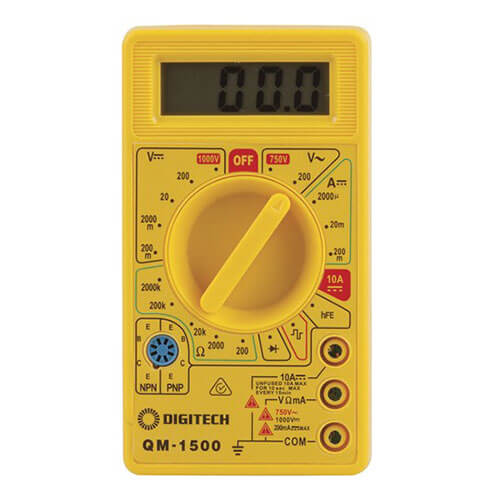

Compact Handy Digital Multimeter (10A DMM)

This is the ideal first multimeter or a handy spare meter for your car or toolbox. Measures essential test ranges and includes plug-in 4mm probes plus transistor tester.

• Ideal First Meter
• Compact Size
• Overload Protected

Product Specifications

• DC Current Ranges : 200.0 Microampere, 2.0mA, 20.0mA, 200.0A, 10.0A
• DC Current Accuracy : 20mA +-1 +-2 Digits, 200mA +-1.2 +-2 Digits, 10A +-2 +-2 Digits
• Resistance Ranges : 200.0Ohm, 2.0Kiloohm, 20.0Kiloohm, 200.0Kiloohm, 2.0Megaohm
• Resistance Accuracy : 200Kiloohm +-0.8 +-2 Digits%, 200Kiloohm +-1 +-2 Digits%
• AC Voltage Ranges : 200.0V, 750.0V
• AC Voltage Accuracy : +-1.2 +-10 Digits%
• DC Voltage Ranges : 200.0mV, 2.0V, 20.0V, 200.0V, 1000.0V
• DC Voltage Accuracy : 200V +-0.5 +-2 Digits, 200V +-0.8 +-2 Digits
• Digits Displayed : 3.5 digit
• Display Type : LCD
• Display Height : 30.0mm
• Display Width : 100.0mm
• Display Backlight : Not Backlit
• Bargraph : false
• Safety Rating Cat : Cat II
• Safety Rating Max Volt : 500.0V
• Count / Maximum Reading : 1999.0 count
• True RMS : false
• Autorange : false
• Width : 68.0mm
• Height : 125.0mm
• Depth : 23.0mm
• Weight : 150.0g
• Size / Shape : 9V
• Battery quantity : 1.0pc
• Batteries included : true
• Batteries can be replaced by user : true
• Compartment location : Internal / In-built
• How is battery compartment kept closed : Clip and Screw

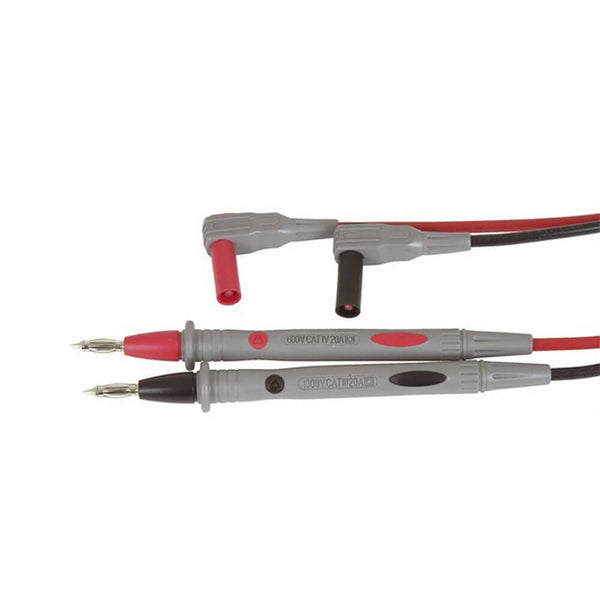

• Probe Type : Basic Meter Probes
• Connection to meter : Shrouded 4mm Banana Plug
• Includes finger guard : true
• Measurement Range Count : 19.0 count
• Meter Input Impedence : 1.0Megaohm
• Input Protection Fuse : 500.0mA
• Measures diode : true
• Measures transistor : true
• Led Indicator Display : false
• Inline Sensor : false

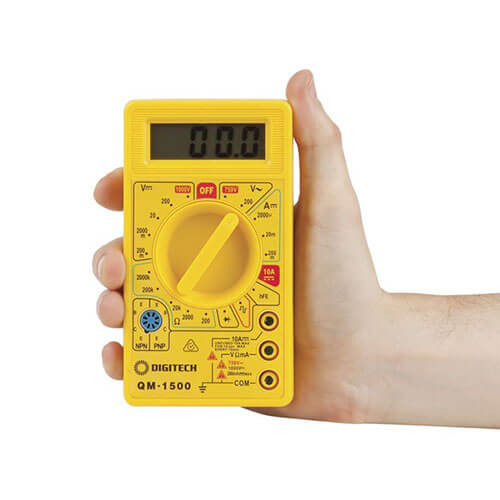

• Special Features : Pocket Sized
• Casing : Plastic

• Length : 19 cm
• Width : 13 cm
• Height : 2.5 cm
