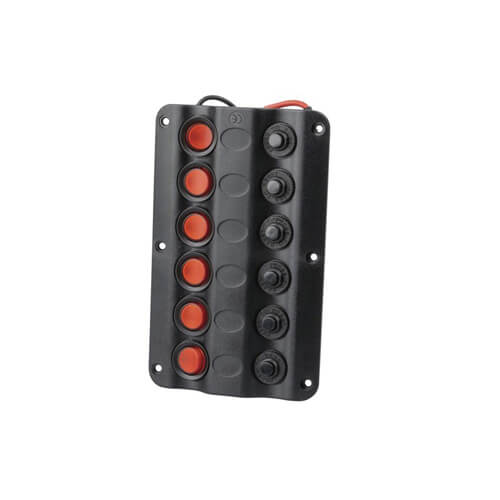

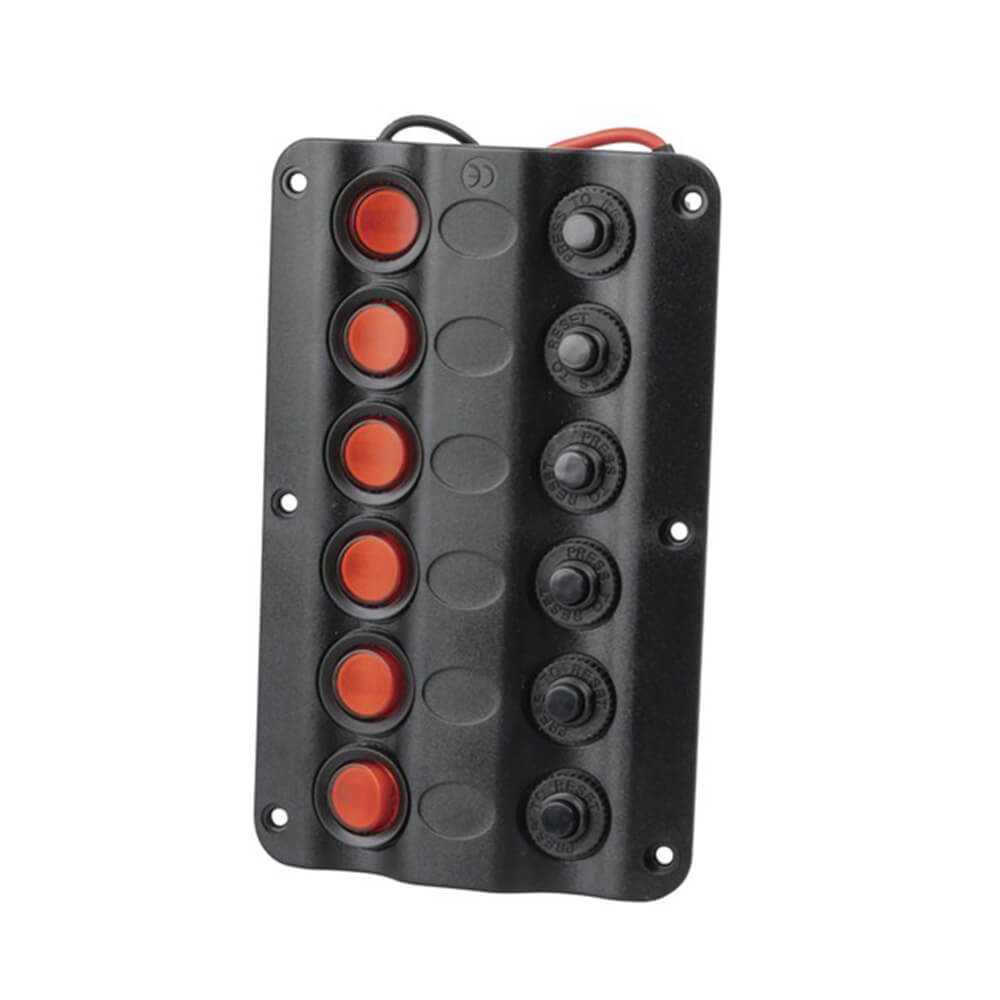

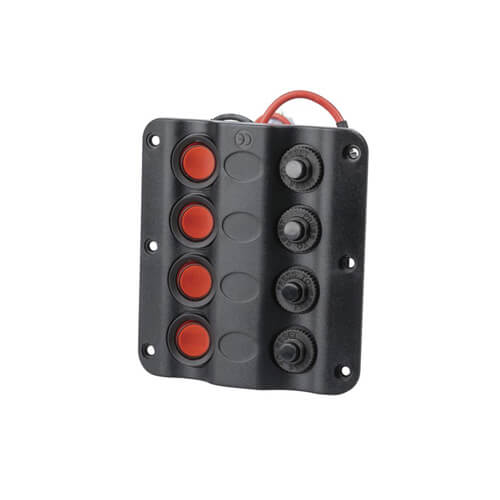

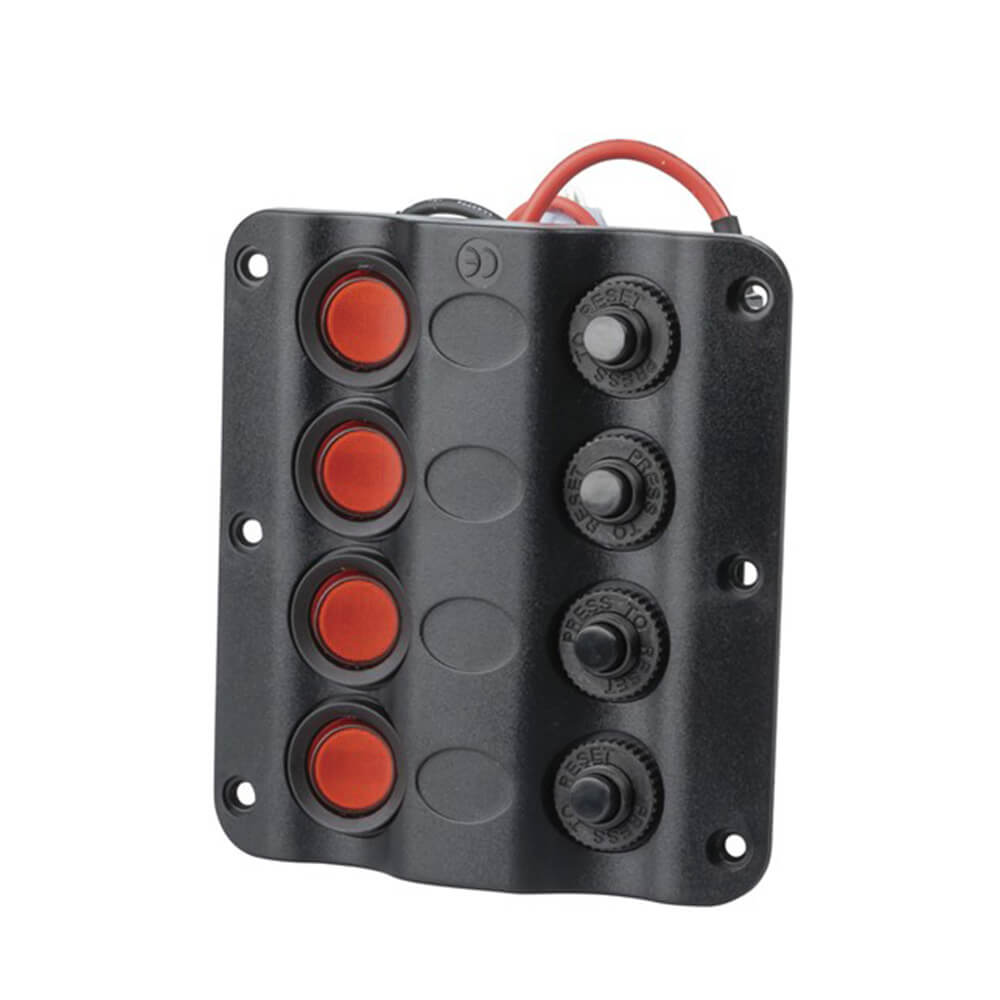

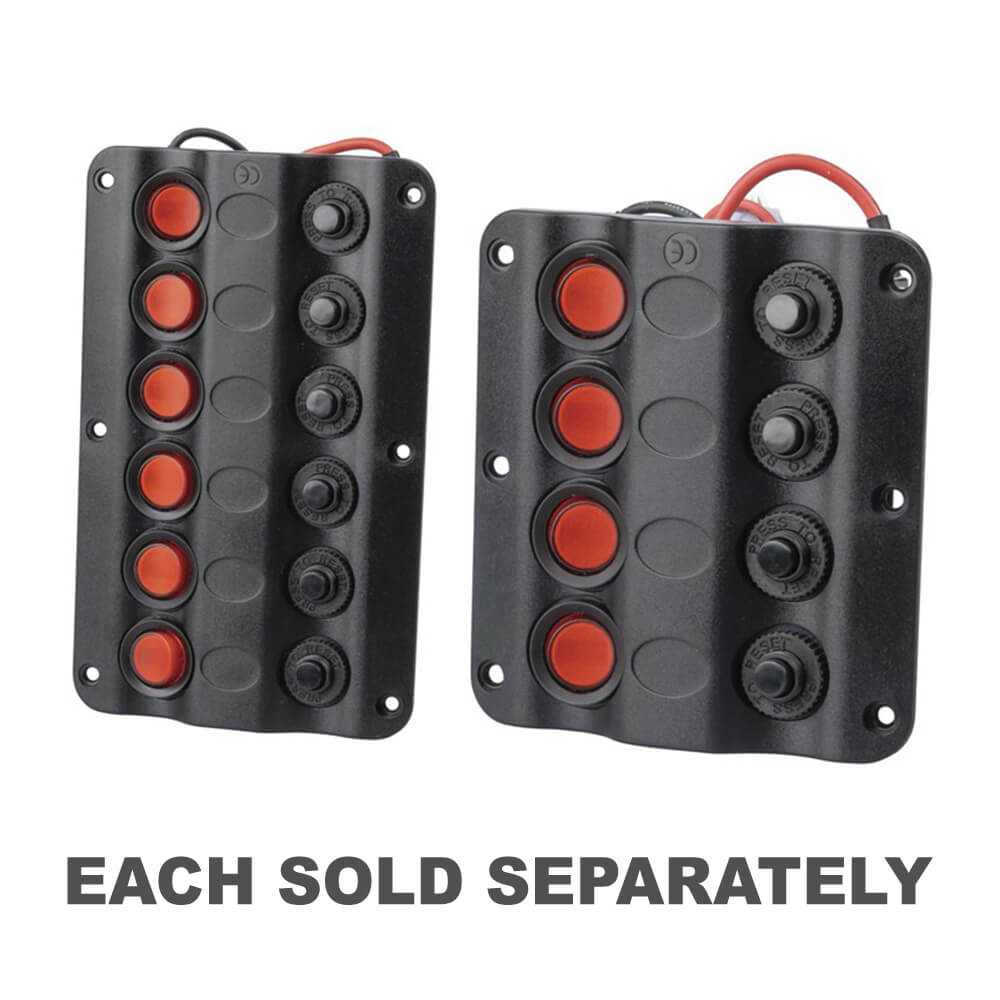

Marine Switch Panel with Circuit Breakers

TechBrandsSKU: 164799

KOOP MEER BESPAAR MEER!
KOPEN 2 KRIJGEN 2% OFF
KOPEN 3 KRIJGEN 4% OFF
.......... ..........
KOPEN 11 KRIJGEN 20% OFF

    • This panel meausres 100 x 110 overall and can be mounted either vertically or horizontally.
    • The circuit breakers are connected in common + by a soldered strip which accepts a 1/4 QC connector.
    • They are then soldered to a 10A rated illuminated rocker switch.
    • The rocker switches have 4.8 QC tabs and are single pole type.
    • The circuit breakers are rated thus: 10A, 8A, 6A and 4A which is quite handy really.

Price:
Sale priceCHF 47.00
Stock:
In stock
 More payment options
delivery
Expected Delivery: CH, before Tue, Jul 08, 2025


Description

There is a negative common bus to the switches which when connected, enables the actuator to glow red when 'on'.

Specifications:

DC current rating : 35A

DC Voltage : 12V

Nominal Voltage : 12V

Type : Incandescent

Illumination Colour : Red

Illumination Position : Top

Width : 100mm

Height : 110mm

Depth : 45mm

Mounting Method : Panel

Attachment / Securing Method : Screw Down

Square Mount Hole Width : 76mm

Square Mount Hole Height : 97mm

Packaged Volume : 0.22l

Packaged Weight : 0.17kg

Packaged Length : 3.8cm

Packaged Width : 11.6cm

Packaged Height : 5


Product Specifications

  • This panel meausres 100 x 110 overall and can be mounted either vertically or horizontally.
  • The circuit breakers are connected in common + by a soldered strip which accepts a 1/4 QC connector.
  • They are then soldered to a 10A rated illuminated rocker switch.
  • The rocker switches have 4.8 QC tabs and are single pole type.
  • The circuit breakers are rated thus: 10A, 8A, 6A and 4A which is quite handy really.
  • Length : 3.8 cm
  • Width : 11.6 cm
  • Height : 5.1 cm
