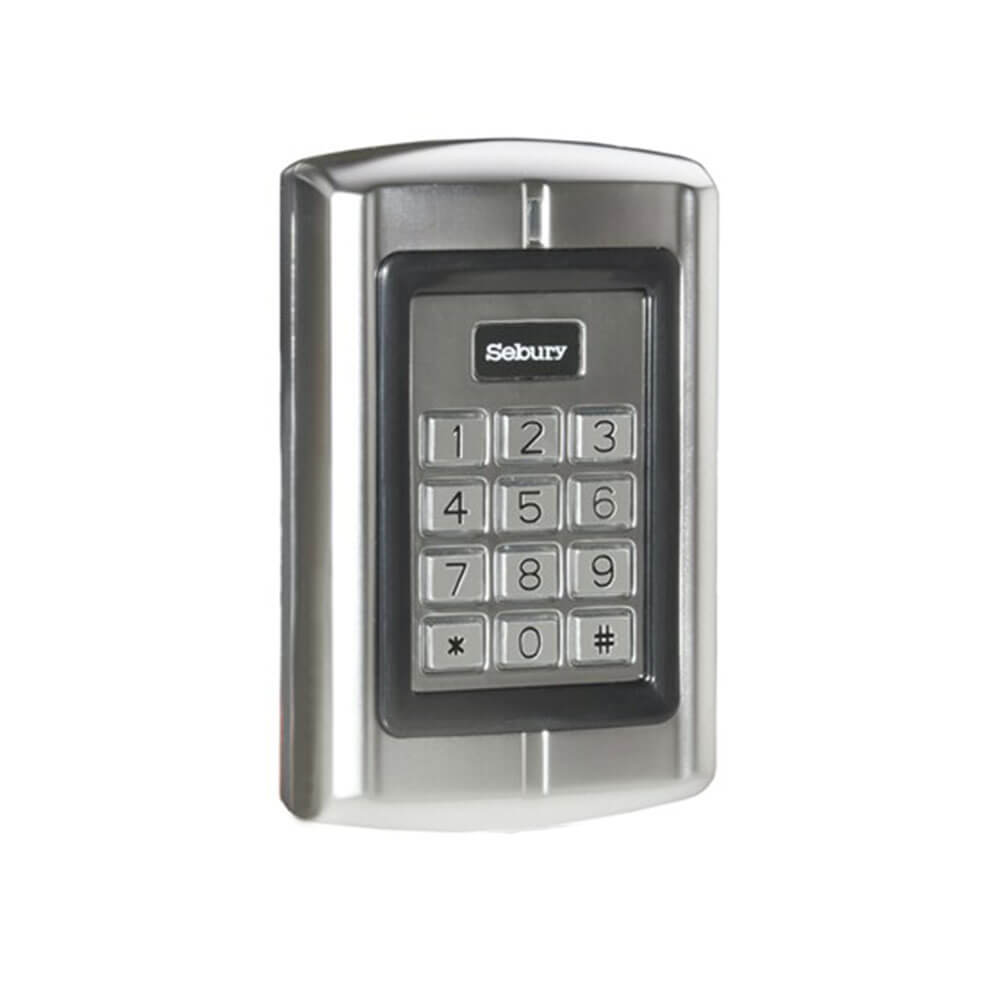

Digital RFID Access Control Keypad (IP65)

LatestBuySKU: 51541

KOOP MEER BESPAAR MEER!
KOPEN 2 KRIJGEN 2% OFF
KOPEN 3 KRIJGEN 4% OFF
.......... ..........
KOPEN 11 KRIJGEN 20% OFF

    • Width : 82.0mm
    • Height : 128.0mm
    • Depth : 28.0mm
    • DC Voltage : 9.0V, 18.0V
    • Number of Buttons : 12.0
    • Number of Users : 2000.0

Price:
Sale priceCHF 158.00
Stock:
In stock
 More payment options
delivery
Expected Delivery: CH, before Tue, Jun 24, 2025


Description

A single door multifunction standalone access controller or a Wiegand output keypad/card reader suitable for an area requiring stricter access control such as a laboratory, warehouse, bank, or prison. The unit is suitable for mounting indoor or outdoor in harsh environments. It's housed in a sturdy IP65 vandal proof zinc alloy electroplated case that can mounted to a wall with minimal drilling. Up to 2,000 users are supported in either a card, a 4-8 digit PIN, or a card + PIN option and the inbuilt card reader supports EM, 125KHz frequency cards. Red/Yellow/Green LEDs will indicate working status of the device.

Full installation instructions and wiring diagrams featured in manual.

Features:

  • Waterproof
  • 2000 users
  • Backlit keypad
  • LED indicator (Green/Yellow/Red)
  • Wiegand 26 input/output for the connection of an external reader
  • Adjustable door output time, alarm time and door open time
  • Built in light dependent resistor for anti-tampering
  • Built in buzzer

Specifications:

  • Voltage: 9-18VAC / 12-24VDC
  • Keypad: 12 keys, 3 x 4 digits
  • Card Type: EM 125KHz
  • Card Reading Distance: 3-6cm
  • Active current: Operating Temperature: -20-60 degrees celcius
  • Adjustable Door Relay time: 99 seconds
  • Adjustable Alarm Time: 0-3 minutes
  • Weigand Interface: Wiegand 26 bit
  • Wiring Connection: Electric Lock, Exit Button, DORL, External Alarm

Product Specifications

  • Width : 82.0mm
  • Height : 128.0mm
  • Depth : 28.0mm
  • DC Voltage : 9.0V, 18.0V
  • Number of Buttons : 12.0
  • Number of Users : 2000.0
  • Length : 19.2 cm
  • Width : 13.5 cm
  • Height : 6 cm

You may also like

Weatherproof Commercial Grade IR Beam Sensor (IP66 15m)Weatherproof Commercial Grade IR Beam Sensor (IP66 15m)
LatestBuy Weatherproof Commercial Grade IR Beam Sensor (IP66 15m)
Sale priceCHF 128.00
In stock
KOOP MEER BESPAAR MEER!
Wireless Driveway & Entry PIR Alert KitWireless Driveway & Entry PIR Alert Kit
LatestBuy Wireless Driveway & Entry PIR Alert Kit
Sale priceCHF 45.00
In stock
KOOP MEER BESPAAR MEER!
12VDC Relay Card Kit (B197)
LatestBuy 12VDC Relay Card Kit (B197)
Sale priceCHF 19.00
In stock
KOOP MEER BESPAAR MEER!

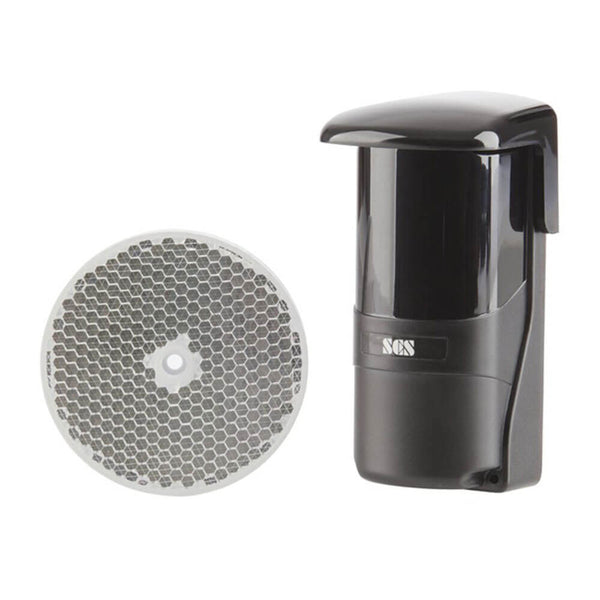

Commercial Grade W/less Doorway Beam Sensor (IR Tx/Rx Refl)Commercial Grade W/less Doorway Beam Sensor (IR Tx/Rx Refl)
LatestBuy Commercial Grade W/less Doorway Beam Sensor (IR Tx/Rx Refl)
Sale priceCHF 104.00
In stock
KOOP MEER BESPAAR MEER!
Wireless In & Out Thermometer and HygrometerWireless In & Out Thermometer and Hygrometer
LatestBuy Wireless In & Out Thermometer and Hygrometer
Sale priceFrom CHF 29.00
In stock
KOOP MEER BESPAAR MEER!
Choose options
Digitech 100MHz Digital Oscilloscope with 8m Memory DepthDigitech 100MHz Digital Oscilloscope with 8m Memory Depth
Digitech Digitech 100MHz Digital Oscilloscope with 8m Memory Depth
Sale priceCHF 427.00
In stock
KOOP MEER BESPAAR MEER!
IP66 Wireless Wi-Fi PTZ Camera with 2 Way Audio and RecordIP66 Wireless Wi-Fi PTZ Camera with 2 Way Audio and Record
Nextech IP66 Wireless Wi-Fi PTZ Camera with 2 Way Audio and Record
Sale priceCHF 140.00
In stock
KOOP MEER BESPAAR MEER!
USB Probe Inspection Camera (2.25m)USB Probe Inspection Camera (2.25m)
LatestBuy USB Probe Inspection Camera (2.25m)
Sale priceCHF 69.00
In stock
KOOP MEER BESPAAR MEER!

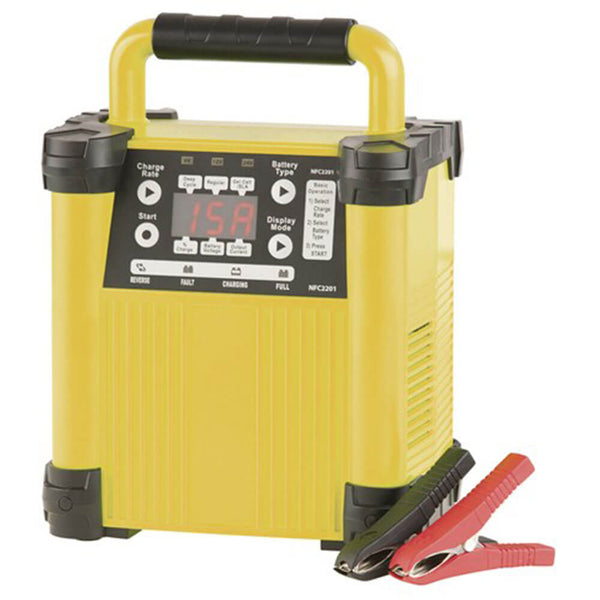

Intelligent 6V/12V/24V 15A Battery ChargerIntelligent 6V/12V/24V 15A Battery Charger
