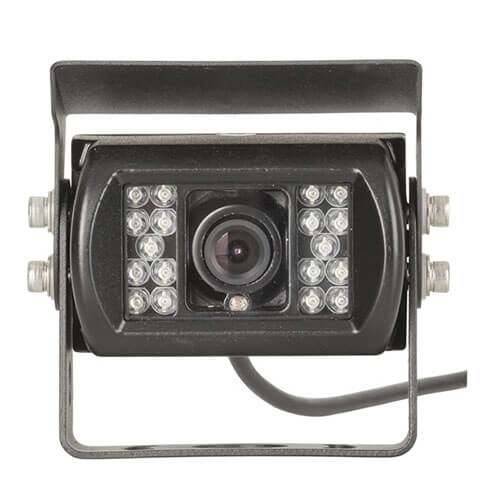

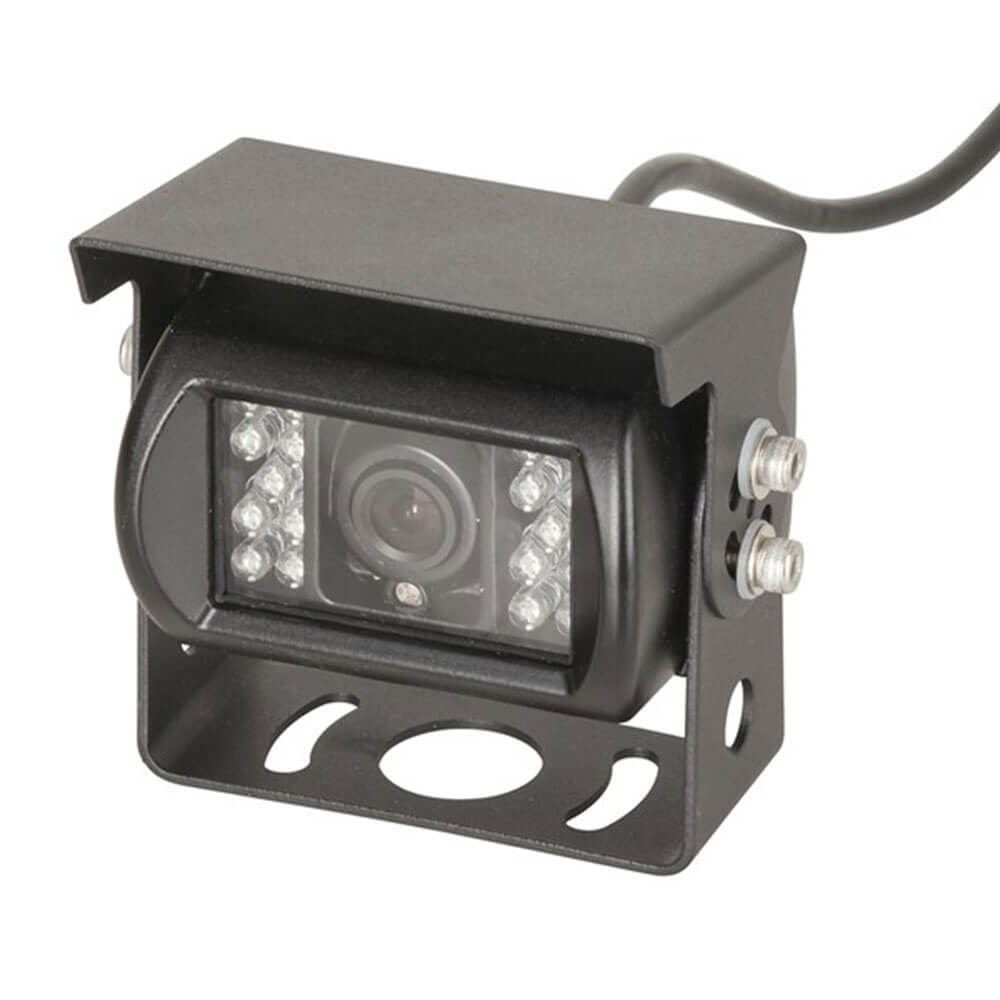

Heavy Duty IR Reverse Cam w/ Mount Bracket (12V CCD IR IP68)

The camera housing is constructed using tough aluminium alloy and equipped with a black metal shield which helps deflect sun glare, rain and dust. It is shock and vibration resistant and fitted with Infrared LEDs for night illumination. It is IP67 rated and suitable for heavy duty applications such as trucks, buses, RV's and caravans.

Features:

• Sensor: Sharp 1/4 CCD
• Resolution: 420 TV lines
• Minimum Illumination: 0.5Lux
• IP Rating: IP67
• Video out: 1Vp.p. 75 ohm
• Power Supply: 12Vdc
• Operating temperature: -20 - +70 deg C, RH95 max.

Product Specifications

• Camera View Angle : 120.0 Degrees
• Dust/Particle Ingress Protection : 6 - Dust tight, no ingress of dust
• Liquid/Moisture Ingress Protection : 7 - Immersion up to 1m

• Length : 13.6 cm
• Width : 9.5 cm
• Height : 7 cm
